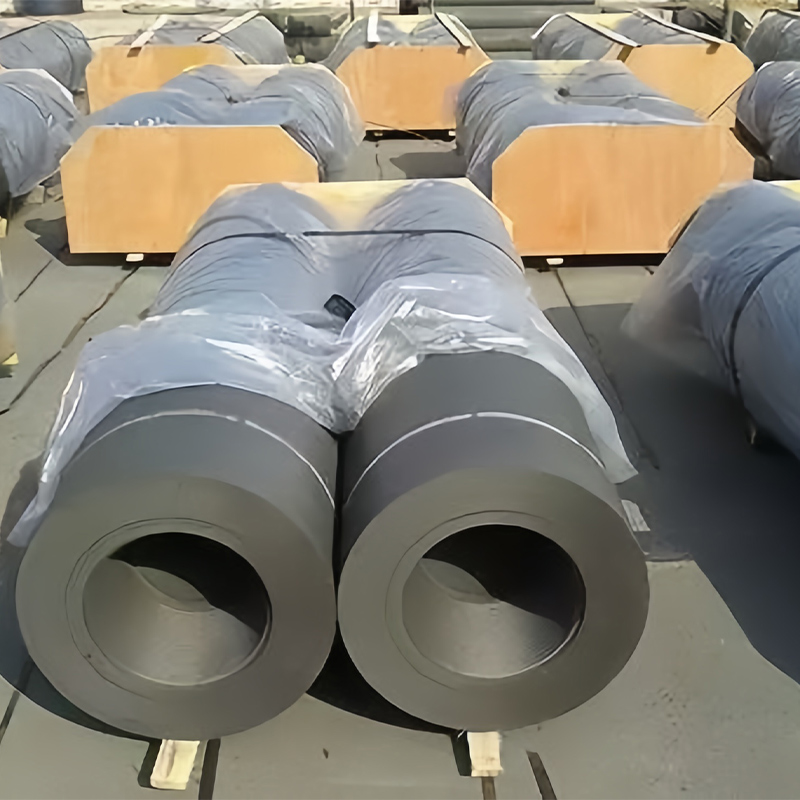

600mm RP Graphite Electrode – Technical Overview & Applications
The 600mm RP graphite electrode is ideal for medium-power EAFs, ladle furnaces, and metallurgy applications, delivering stable arcs, reduced consumption, and enhanced energy efficiency for steel and alloy production.
Description
marker
Basic Description
The 600mm RP (Regular Power) graphite electrode is specifically designed for medium-capacity Electric Arc Furnaces (EAFs), ladle furnaces (LFs), and ferroalloy production applications. Manufactured from high-grade petroleum needle coke and coal tar pitch, RP-grade electrodes provide excellent electrical conductivity, thermal stability, and mechanical integrity under moderate current conditions.
Through advanced graphitization at temperatures exceeding 2800 °C and high-precision CNC machining, these electrodes ensure stable arc behavior, reduced consumption rates, and consistent operational performance in standard steelmaking environments.
RP Graphite Electrodes Parameters — 600mm
| Parameter | Unit | Electrode | Nipple |
| Resistivity | μΩ·m | 7.5 ~ 8.5 | 5.8 ~ 6.5 |
| Bending Strength | MPa | ≥ 8.5 | ≥ 16.0 |
| Elastic Modulus | GPa | ≤ 9.3 | ≤ 13.0 |
| Bulk Density | g/cm³ | 1.55 ~ 1.63 | ≥ 1.74 |
| Thermal Expansion Coefficient (CTE) | 10⁻⁶/°C | ≤ 2.4 | ≤ 2.0 |
| Ash Content | % | ≤ 0.3 | ≤ 0.3 |
| Allowable Current | A | — | 30000 ~ 36000 |
| Current Density | A/cm² | — | 11 ~ 13 |
| Actual Diameter | mm | Max: 613 Min: 607 | — |
| Actual Length | mm | 2200 ~ 2700 (Customizable) | — |
| Length Tolerance | mm | ±100 | — |
| Short Ruler Length | mm | -300 | — |
Core Features & Advantages
● High Electrical Conductivity
Low resistivity supports reliable current transfer and stable arc initiation during melting cycles.
● Excellent Mechanical Strength
Optimized tensile and compressive properties minimize electrode breakage during handling and furnace operation.
● Superior Thermal Stability
Low thermal expansion prevents cracking and maintains integrity under rapid thermal changes.
● Low Impurity Content
Controlled ash, sulfur, phosphorus, and volatiles ensure cleaner melting and less slag formation.
● Precision Threading & Machining
CNC-machined conical threads (e.g., 3TPI, 4TPI) and M64x4 nipples provide tight connections with low contact resistance.
Application Scenarios
● Electric Arc Furnace (EAF) Steelmaking
Ideal for melting recycled steel in mid-load EAF operations requiring stable arc characteristics.
● Ladle Furnace (LF) Secondary Refining
Ensures precise temperature control and minimal impurity introduction during alloy composition adjustment.
● Ferroalloy Production (SAF)
Compatible with Submerged Arc Furnaces (SAF) used for ferrochrome, ferrosilicon, and silicon manganese production.
● Foundry and Non-Ferrous Melting
Suitable for copper, aluminum, and alloy refining processes requiring stable arcs and minimal electrode contamination.
Manufacturing & Quality Control
● Raw Material Selection
Uses premium needle coke with ≤ 0.6% volatile matter to maintain low oxidation rates and consistent porosity.
● Forming & Baking
Isostatic pressing followed by baking in tunnel kilns (up to 900 °C) enhances structural homogeneity.
● Graphitization Process
High-temperature graphitization above 2800 °C improves crystalline alignment for conductivity and strength.
● Precision Machining
Electrodes and nipples are CNC-machined to exacting tolerances, ensuring proper joint fit and electrical contact.
● Comprehensive Testing
Every batch undergoes ultrasonic inspection, resistivity and strength testing, and verification per standards such as ASTM C1234, IEC 60239, and GB/T 20067.
End-User Benefits
● Lower Electrode Consumption Rate (ECR)
Optimized arc performance reduces consumption per ton of steel melted.
● Higher Energy Efficiency
Improved conductivity and thermal transfer decrease electricity usage (kWh/t).
● Extended Furnace Uptime
Reliable mechanical strength and thread durability reduce maintenance and replacement cycles.
● Cleaner Metallurgical Output
Low impurity composition supports the production of high-purity steel and alloys.
Conclusion
The 600mm RP graphite electrode offers a cost-effective, high-performance solution for steelmakers and foundries operating under medium current conditions. Its combination of electrical reliability, thermal endurance, and precise machining makes it ideal for EAF, LF, and SAF processes. The result: improved energy efficiency, reduced electrode wear, and enhanced metallurgical quality in every melt.
