650mm / 700mm UHP Graphite Electrode
The 650mm and 700mm UHP graphite electrodes are essential for large-scale EAF and LF operations, enabling efficient scrap melting and precise steel refining. Their superior electrical conductivity, thermal resistance, and mechanical strength ensure reliable performance under extreme industrial conditions, making them critical for improving output and steel quality in modern metallurgy.
Description
marker
Basic Description
The 650mm and 700mm Ultra High Power (UHP) graphite electrodes represent the highest standard in large-scale steelmaking and non-ferrous refining, specifically engineered for ultra-high current applications in electric arc furnaces (EAF) and ladle furnaces (LF). These large-diameter electrodes offer outstanding electrical conductivity, excellent thermal shock resistance, and robust mechanical strength under extreme industrial conditions.
Key Technical Specifications:
650mm UHP Electrode
| Parameter | Unit | Electrode | Nipple |
| Resistivity | μΩ·m | 4.5 ~ 5.4 | 3.0 ~ 3.6 |
| Bending Strength | MPa | ≥ 10.0 | ≥ 24.0 |
| Elastic Modulus | GPa | ≤ 13.0 | ≤ 20.0 |
| Bulk Density | g/cm³ | 1.68 ~ 1.72 | 1.80 ~ 1.86 |
| Thermal Expansion Coefficient | 10⁻⁶/°C | ≤ 1.2 | ≤ 1.0 |
| Ash Content | % | ≤ 0.2 | ≤ 0.2 |
| Allowable Current | A | — | 70000 ~ 86000 |
| Current Density | A/cm² | — | 21 ~ 25 |
| Actual Diameter | mm | 650 | — |
| Actual Length (Customizable) | mm | 2200 - 2700 | — |
| Length Tolerance | mm | ±100 | — |
| Short Ruler Length | mm | -300 | — |
700mm UHP Electrode
| Parameter | Unit | Electrode | Nipple |
| Resistivity | μΩ·m | 4.5 ~ 5.4 | 3.0 ~ 3.6 |
| Bending Strength | MPa | ≥ 10.0 | ≥ 24.0 |
| Elastic Modulus | GPa | ≤ 13.0 | ≤ 20.0 |
| Bulk Density | g/cm³ | 1.68 ~ 1.72 | 1.80 ~ 1.86 |
| Thermal Expansion Coefficient | 10⁻⁶/°C | ≤ 1.2 | ≤ 1.0 |
| Ash Content | % | ≤ 0.2 | ≤ 0.2 |
| Allowable Current | A | — | 73000 ~ 96000 |
| Current Density | A/cm² | — | 18 ~ 24 |
| Actual Diameter | mm | 700 | — |
| Actual Length (Customizable) | mm | 2200 - 2700 | — |
| Length Tolerance | mm | ±100 | — |
| Short Ruler Length | mm | — | — |
Manufacturing Process & Quality Control
These UHP electrodes are manufactured through a rigorous process involving high-purity needle coke, followed by calcination, molding, baking, high-pressure impregnation, and high-temperature graphitization (above 2800°C). Precision machining of both electrodes and nipples ensures tight dimensional tolerance, low joint resistance, and arc stability during high-power operations.
Application Scenarios:
● Electric Arc Furnace (EAF) Steelmaking
Ideal for ultra-high power steel melting using scrap or DRI in large-scale mills. These electrodes handle continuous operation with high arc temperatures and massive electrical loads.
● Ladle Furnace (LF) Refining
Critical in secondary metallurgy for temperature control, alloy adjustments, and inclusion removal—ensuring clean, high-quality steel output.
● Non-Ferrous High-Temperature Smelting
Also used in aluminum, copper, and nickel melting, where arc consistency and purity are essential to product quality and furnace efficiency.
Key Advantages:
● High Electrical Conductivity → Enhances energy efficiency and arc stability
● Excellent Thermal Shock Resistance → Reliable performance under cyclic thermal stress
● High Mechanical Strength → Reduces risk of breakage during handling and operation
● Low Ash and Impurities → Preserves melt purity and end-product quality
● Long Service Life → Lowers total consumption per ton of steel
Conclusion
650mm and 700mm UHP graphite electrodes are indispensable for high-output, energy-intensive metallurgical operations. Their superior structural properties ensure stable performance under extreme load conditions, making them the ideal choice for modern steel producers seeking reliability, energy efficiency, and lower operating costs.
contact us
Related popular products
Graphite Electrode Nipples
Graphite electrode nipples are critical components used to connect sections of electrode columns, widely applied in high-temperature industrial equipment such as Electric Arc Furnaces (EAF), Ladle Furnaces (LF), and Submerged Arc Furnaces (SAF).
Classification of Graphite Materials for Electrodes and High-Temperature Applications
Graphite products are widely used in semiconductor thermal fields, aerospace nozzles, arc furnace electrodes, and chemical electrolysis systems. Featuring ultra-high purity, excellent thermal resistance, and low electrical resistivity, they serve as essential materials in advanced manufacturing and energy industries.
HP Graphite Electrodes
HP graphite electrodes are widely used in electric arc furnace steelmaking, metallurgical processes, and high-temperature electrolysis. Their excellent conductivity and heat resistance significantly improve smelting efficiency and product quality, making them essential in modern metallurgy.
400mm UHP Graphite Electrode – Advanced Ultra High Power Solution for Metallurgical Furnaces
The 400mm UHP graphite electrode is engineered for heavy-duty Electric Arc Furnaces (EAF), Ladle Furnaces (LF), and Submerged Arc Furnaces (SAF). It offers superior conductivity and thermal shock resistance, enabling rapid melting, reduced electrode consumption, and enhanced steel quality in advanced steel and alloy production.
Graphite Scrap Product Specifications – High-Purity Carbon Material for Graphite Electrodes
High-purity graphite scrap is widely used in electric arc furnace and ladle furnace electrode manufacturing, enhancing electrode conductivity and thermal resistance for efficient smelting and sustainable recycling.
Carbon Electrodes: Professional Overview and Applications
Carbon electrode, it is a product suitable for resistance electric arc furnace. It is suitable for the production of silicon iron, etc. It is an energy-saving updated product for metal smelting. Choosing Carbon electrodes can bring you more economic benefits.
550mm UHP Graphite Electrode
The 550mm UHP graphite electrode, known for its excellent conductivity and thermal stability, is widely applied in electric arc furnaces (EAF) and ladle furnaces (LF). It supports efficient, stable melting and refining of steel and non-ferrous metals, significantly improving melting speed and energy efficiency while ensuring metal purity and product quality. It is a core consumable in modern metallurgical production, meeting the stringent demands of large-scale steel and non-ferrous metal plants.
500mm RP Graphite Electrode — Advanced Performance for Large-Scale Electric Arc Furnaces
The 500mm RP graphite electrode is designed for large-capacity EAFs, offering superior conductivity, mechanical strength, and thermal stability. Advanced manufacturing ensures low resistivity and high thermal resistance, reducing electrode consumption and boosting steelmaking efficiency—a cost-effective solution.

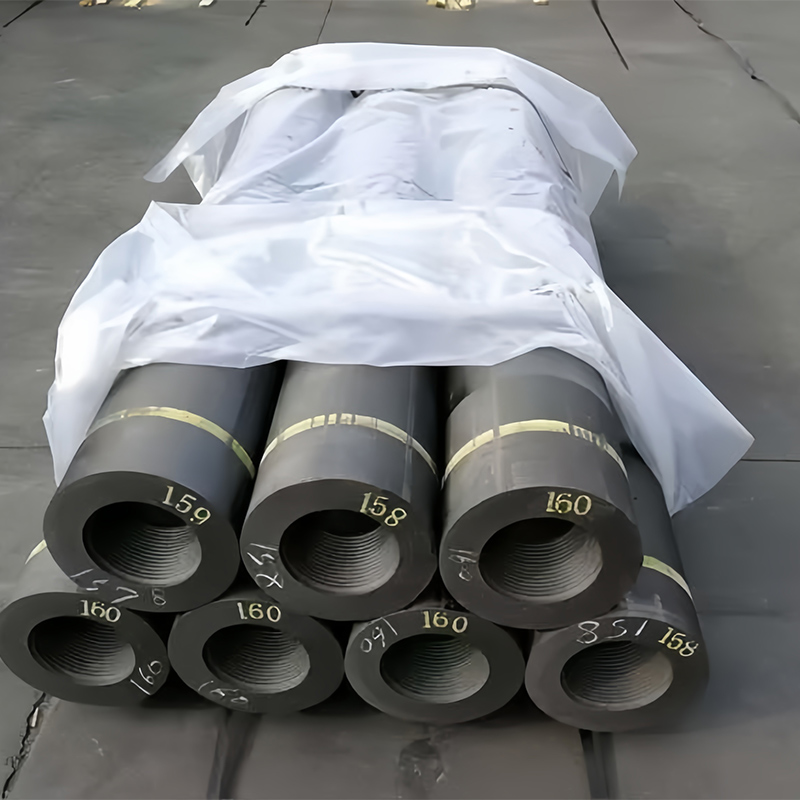

550mm High Power Graphite Electrode (HP) — Custom-Engineered for High-Load Applications
